Ashok Leyland 3520TS – Twin Steer price, gvw & detailed specifications.
Ashok Leyland 3520TS– Twin Steer
The Latest Price Range
of Ashok Leyland 3520 TS Twin Steer Starts
From ₹35,55,968.00 to ₹36,30,976.00 Lakhs
onwards, The Price Of Ashok Leyland 3530TS Varies Depending
on its Wheel Base, Load Body options & Specifications.
Ashok leyland 3520 TS
is a truck with 35,000Kg gross vehicle
weight. The engine powering this truck is 5760 cc H series BS-6 6-cylinder, in line with iGen6 Technology
producing Power of 200 HP @ 2400 rpm
and a Torque of 700 Nm @ 1200-1900
rpm.
Ashok Leyland 3520 TS-Twin Steer is Available in chassis options
like COWL-Cowl Chassis & CBC - Cab Chassis. The OEM builted body
is available in loadbody combinations like FSD
- Fixed Side Deck & H S D -High
side deck. The 3520 TS-Twin Steer comes with a wheelbase combination of 6000mm, 6300mm, 6600mm, with a load body span of 24ft (7.3m), 26ft (7.9m), 28ft (8.5m), 30ft (9.1m), 32ft (9.8m).
The Detailed Specification of 3520TS-Twin Steer Variant are well described below, if you are serious about buying a new truck then refer to truckexpert.in for the latest range of trucks
available in India.
 |
| Ashok Leyland 3520 Twin Steer - Chassis Drawing |
This variant comes with CBC variant i.e., Cab & Chassis in
which load body should be builted by a “Type Approved Body Builder” & based
on loadbody FSD & HSD. please refer the top of the page for detailed
specifications.

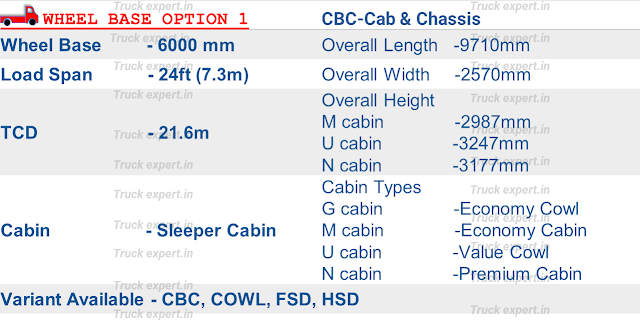

Ashok leyland 3520 8x2 TS option 1
Ashok leyland 3520 8x2 TS of 6000mm wheelbase have a load body span
of 24ft (7.3m), the overall
dimensions of cab & chassis are mentioned above including its overall
length-9710mm, overall height -2987mm/3247mm/3177mm, overall width- 2570mm,
Turning circle Diameter of 21.6m & cross-linked polymer fuel tank capacity
of 220Ltr.
Ashok leyland 3520 8x2 TS option 2
Ashok leyland 3520 8x2 TS of 6300mm wheelbase have a load body span
of 26ft (7.9m), the overall
dimensions of cab & chassis are mentioned above including its overall
length-10360mm, overall height -2987mm/3247mm/3177mm, overall width- 2570mm,
Turning circle Diameter of 22.6m & cross-linked polymer fuel tank capacity
of 300Ltr/ 375Ltr.
Ashok leyland 3520 8x2 TS option 3
Ashok leyland 3520 8x2 LA of 6600mm wheelbase have a load body span
of 28ft (8.5m), the overall
dimensions of cab & chassis are mentioned above including its overall
length-10960mm, overall height -2987mm/3247mm/3177mm, overall width- 2570mm,
Turning circle Diameter of 23.7m & cross-linked polymer fuel tank capacity
of 300Ltr/ 375Ltr.
Ashok leyland 3520 8x2 TS option 4
Ashok leyland 3520 8x2 LA of 6600mm wheelbase have a load body span
of 30ft (9.1m), the overall
dimensions of cab & chassis are mentioned above including its overall
length-11560mm, overall height -2987mm/3247mm/3177mm, overall width- 2570mm,
Turning circle Diameter of 23.7m & cross-linked polymer fuel tank capacity
of 300Ltr/ 375Ltr.
Ashok leyland 3520 8x2 LA option 5
Ashok leyland 3520 8x2 LA of 6600mm wheelbase have a load body span
of 32ft (9.8m), the overall
dimensions of cab & chassis are mentioned above including its overall
length-11960mm, overall height -2987mm/3247mm/3177mm, overall width- 2570mm,
Turning circle Diameter of 23.7m & cross-linked polymer fuel tank capacity
of 300Ltr/ 375Ltr.
Ashok leyland 3520 8x2 TS- Engine Specification
Ashok leyland 3520 8x2 TS comes
with a maximum engine output of 200Hp @ 2400rpm & a maximum
torque of 700N-m @ 1200-1900rpm at the rear drive axle,
this power is Produced from a 5760cc
bs6 engine. this vehicle comes under
the N3 category.
The engine of Ashok leyland 3520
8x2 TS is coupled with a 6 Speed (6 forward & 1 reverse) or 8
Speed, synchromesh Transmission system with a single plate dry type
organic clutch with a clutch Diameter of 380mm.
The chassis frame Section of Ashok
leyland 3520 8x2 TS is 275 x 75x 6mm / 7mm / 8mm.
Ashok leyland 3520 8x2 TS comes
with Semi-elliptic
Multi Leaf or Parabolic springs at Front & Non-Reactive Suspension or
Slipper end suspension at Rear suspension.
Ashok leyland 3520 8x2 TS have a Hydraulic assisted power steering,
The “N” Type premium sleeper cabin gives a good comfort with a
maximum seating capacity of 2 persons including driver with a sleeper berth.
The air conditioning is optional in Ashok leyland 3520 8x2 TS – Twin Steer.
The service brakes are pneumatic foot operated dual line system. The front & rear wheels are having
drum brakes.
Ashok leyland 3520 8x2 TS- Tyre
size
The Ashok leyland 3520 8x2 TS comes with a tyre size of 295/90 R20-16PR.
Ashok leyland 3520 8x2 TS- Fuel Tank & Electrical
The fuel capacity of cross-linked polymer tank is 220Ltr, 300Ltr
& 375Ltr and Adblue capacity of 48Ltr.
The Electrical system
consist of 24V 2x12V,120AH batteries.
FREQUENTLY
ASKED QUESTIONS about Ashok Leyland 3520TS-Twin Steer
Q. What is the gvw (Gross Vehicle Weight) of Ashok Leyland 3520TS Twin
Steer truck variant?
A. 35,000 Kg is the gvw of ashokleyland 3520TS
Twin Steer.
Q. Available Load Body Options in Ashok Leyland 3520 TS-Twin Steer Truck ?
A. Ashok Leyland 3520TS-Twin Steer is
available in 24ft, 26ft, 28ft, 30ft, 32ft Load body span.
Q. What all are the available wheelbase of ashokleyland 3520TS Twin Steer
truck?
A. 6000mm, 6300mm, 6000mm are the available wheelbase for Ashok
Leyland 3520TS Twin Steer.
Q What is the Tyre Size
of ashokleyland 3520TS Twin Steer truck ?
A 295/90R20 – 16 PR is the Tyre size of ashok
leyland 3520TS Twin Steer
Q Which type of Applications does Ashokleyland 3520TS Twin
Steer truck ideal fit ?
A Ashok Leyland 3520TS Twin Steer is specially designed for higher payload and ideal fit for applications like Market Load, Cement, POL Tanker, Bitumen, Food Grain.
 |
 |
 |
 |
 |
Wheel base / Loading span may vary based on load-road-application selected .
Specifications are subject to change and are for reference only
