Tata Ultra T9 Bs6 price, gvw & detailed specifications
TATA Ultra T9 BS6 4x2
Latest Price
Range ₹16,71,675.00 to ₹17,71,804.00.
TATA Ultra T9 latest price range starts from ₹16,71,675.00
to ₹17,71,804.00 lakhs onwards & Price Varies Depending on its Wheel
Base & Specifications.
TATA Ultra T9 in Brief Description.
TATA Ultra T9 is an 4x2 axle configurated 6-wheeler BS6 N2 category goods carrier 8,750 kg / 8.75 Tonne tonnage GVW truck with 3550mm, 3920mm, 4530mm wheelbase combinations & 14ft (4.3m) 17ft (5.2m), 20ft (6.1m) load body length options specially designed for applications like Agri Products, Dairy Products, Fisheries, FMCG, Fruits & Vegetables, Parcel & Logistics... All Specifications of Tata T9 Ultra is mentioned detailed in below photos as downloadable form.
TATA Ultra T9 GVW Gross Vehicle Weight (Tonnage).
8,750 kg / 8.75 Tonne is the GVW of Tata Ultra T9.
TATA Ultra T9 Chassis Weight (Kerb Weight).
Chassis- 2720 to 2860 Kg & Chassis + Loadbody- 3350 to 3750 Kg is the Chassis weight (Kerb weight) of Tata Ultra T9.
TATA Ultra T9 Pay Load (Tonnage).
5020 to 5400 Kg is the Pay Load (Tonnage) of Tata Ultra T9.
TATA Ultra T9 Chassis Options, Wheelbase & Load body length.

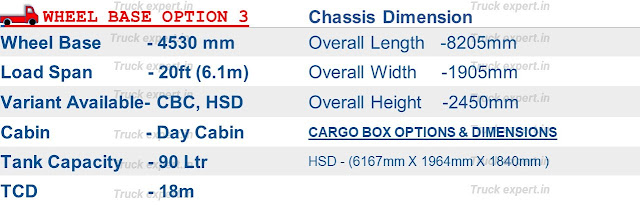

Option 1 – CBC, HSD - 3550mm wheelbase & load body span of 14ft (4.3m). Option 2 – CBC, HSD - 3920mm wheelbase & load body span of 17ft (5.2m). Option 3 – CBC, HSD - 4530mm wheelbase & load body span of 20ft (6.1 m).
TATA Ultra T9 Engine Specification.
Tata Ultra T9 forward controlled engine comes with a maximum engine output power of 73.5 kW (100PS) @ 2800 rpm & a maximum torque of 300 Nm @ 1200 -2200 rpm at the drive axle.
This power is Produced from an 4SPCR series BS6,4-cylinder 2956 cc Diesel engine.
TATA Ultra T9 Transmission.
6 Speed (5 forward & 1 reverse) synchromesh Transmission system
TATA Ultra T9 Clutch.
280mm Diameter Single Plate Dry Friction Type.
TATA Ultra T9 Suspension.
Front Suspension - Semi elliptic spring, Parabolic spring (Optional), 2 no’s Hydraulic Double acting Shock Absorbers with Antiroll bar.
Rear Suspension - Semi elliptical leaf spring.

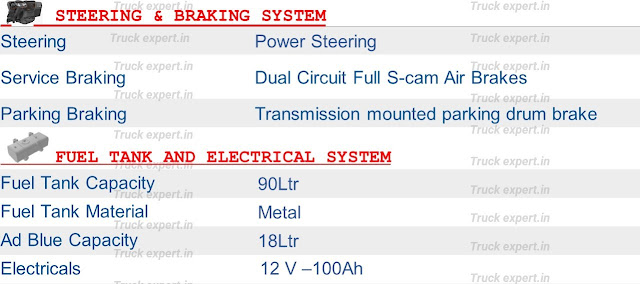

TATA Ultra T9 Steering.
Power Steering.
TATA Ultra T9 Braking.
Service Braking - Dual Circuit Full S-cam Air Brakes
Parking Braking - Transmission mounted parking drum brake.
TATA Ultra T9 Fuel & AdBlue.
Fuel Tank Capacity - 90 Ltr. Material - Metal. AdBlue Tank Capacity - 18 Ltr.
TATA Ultra T9 Electrical.
Electrical System - 12V, 100Ah.
TATA Ultra T9 Tyre Size.
Option 1: Single Tyre - 225/75 R 17.5, 14 PR.
No of Tyre (Front + Rear + Spare)- 2+4+1
TATA Ultra T9 Gradeability.
Gradeability - 26.2%
TATA Ultra T9 Seating Capacity.
Seating Capacity- Driver + 1
