Ashok Leyland Ecomet Star 1615 HE BS6

Day Cabin

Latest Price Range ₹23,23,566.00 to ₹24,77,866.00

Ashokleyland Ecomet Star 1615HE Day Cabin latest price range starts from ₹23,23,566.00 to ₹24,77,866.00 lakhs onwards, Ashok leyland Ecomet Star 1615HE Price Varies Depending on its Wheel Base, Load body options & Specifications. Ashok leyland Ecomet Star 1615HE is a truck with 16,100Kg gross vehicle weight. The engine powering this truck is 3840cc H series BS-6 4-cylinder CRS with iGen6 Technology producing Power of 150 HP @ 2400 rpm and a Torque of 450 Nm @ 1250-2000 rpm.
Ashok leyland Ecomet Star 1615HE is a 4x2 goods carrier available in load body type like FSD-Fixed side deck, DSD-Drop Side deck, HSD-High side deck & CBC-Cab & Chassis which is chassis without loadbody. The ashok leyland ecomet star 1615HE comes with a 3970mm, 4200mm, 4750mm, 5200mm wheelbase options & load body span of 17ft (5.2m), 19ft (5.8m), 20ft (6.1m), 22ft (6.7m), 24ft (7.3m).

The specifications of Ashok leyland Ecomet Star 1615HE are well described below, if you are serious about buying a new truck then refer to truckexpert.in for the latest range of trucks available in India.

Ashok Leyland Ecomet Star Ashok Leyland Ecomet Star 1415 HE Day Cabin - Chassis Drawings - Leyland 1615 HE body builder drawings - truck expert.in

Ashok Leyland Ecomet Star 1615 HE

The Detailed Specification Of Ashok Leyland Ecomet 1615 HE Day Cabin Truck Variant are as described below

Ashok leyland Ecomet Star 1615HE option 1 - Day Cabin Ashok leyland Ecomet Star 1615 HE of 3970mm wheelbase have a load body span of 17ft (5.2m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-7030mm, overall height-2780mm, overall width- 2207mm, & fuel tank capacity of 185 Ltr. This vehicle comes with fixed side deck, drop side deck & high side deck load body option with an internal cargo box / load body length of 5287mm & a width of 2260mm/2306mm,the internal height of fixed side deck is 593mm, drop side deck is 591mm & high side deck is 1105mm.Please refer to the top of the page for detailed specifications.

Ashok leyland Ecomet Star 1615HE option 2 - Day Cabin Ashok leyland Ecomet Star 1615 HE of 4200mm wheelbase have a load body span of 19ft (5.8m) , the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-7605mm, overall height-2780mm, overall width- 2207mm, & fuel tank capacity of 185 Ltr. This vehicle comes with fixed side deck & high side deck load body option with an internal cargo box / load body length of 5810mm & a width of 2260mm,the internal height of fixed side deck is 593mm & high side deck is 1105mm.Please refer to the top of the page for detailed specifications.

Ashok leyland Ecomet Star 1615HE option 3 - Day Cabin Ashok leyland Ecomet Star 1615 HE of 4200mm wheelbase have a load body span of 20ft (6.1m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-8050mm, overall height-2780mm, overall width-2207mm & fuel tank capacity of 185 Ltr. This vehicle comes with only high side deck load body option with an internal cargo box / load body length of 6096mm & a width of 2260mm, the internal height of high side deck is 1105mm.Please refer to the top of the page for detailed specifications.

Ashok leyland Ecomet Star 1615HE option 4 - Day Cabin Ashok leyland Ecomet Star 1615 HE of 4750mm wheelbase have a load body span of 22ft (6.7m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-8500mm, overall height-2780mm, overall width-2207mm & fuel tank capacity of 185 Ltr. This vehicle comes with only fixed side deck, drop side deck & high side deck load body option with an internal cargo box / load body length of 6768mm & a width of 2260mm/2306mm, the internal height of fixed side deck is 593mm, drop side deck is 591mm & high side deck is 1105mm.Please refer to the top of the page for detailed specifications.

Ashok leyland Ecomet Star 1615HE option 5 - Day Cabin Ashok leyland Ecomet Star 1615 HE of 5200mm wheelbase have a load body span of 24ft (7.3m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-9325mm, overall height-2780mm, overall width-2207mm & fuel tank capacity of 185 Ltr. This vehicle comes with only high side deck load body option with an internal cargo box / load body length of 7315mm & a width of 2260mm, the internal height of high side deck is 1105mm.Please refer to the top of the page for detailed specifications.

Ashok leyland Ecomet Star 1615HE Day Cabin - Engine Specification Ashok leyland Ecomet Star 1615 HE comes with a maximum engine output power of 150 hp @ 2400 rpm & a maximum torque of 450N-m @ 1250-2000 rpm at the rear drive axle, this power is Produced from a 3840cc H series BS-6 4-cylinder CRS with iGen6 Technology engine. The engine is forward control & This vehicle comes under the N3 category.

Ashok leyland Ecomet Star 1615HE- Transmission & Suspension The engine of Ashok leyland Ecomet Star 1615 HE is coupled with a 6 Speed ODGB - FGR 6.93, cable CSO system (6 forward & 1 reverse) synchromesh Transmission system with a single plate dry type clutch with clutch booster, ZF6S36 OD GB - FGR 6.93 | ZF 6S OD - FGR 8.28(Option) The clutch has a Diameter of 330mm. The chassis frame Section of Ashok leyland Ecomet Star 1615 HE is 204 x 76 x 6mm. Ashok leyland Ecomet Star 1615 HE comes with semi elliptical multi leaf at front suspension & rear suspension.

shok leyland Ecomet Star 1615HE- Cabin & Steering System Ashok leyland Ecomet Star 1615 HE has an integral power steering, The Tiltable ecomet star day cabin gives a good comfort with the overall ground clearance of 273mm. Ashok leyland Ecomet Star 1615HE- Brake System The service brakes are pneumatic foot operated dual line systems acting on wheels & Parking Brakes at rear wheels only. The front & rear wheels have drum brakes.

Ashok leyland Ecomet Star 1615HE- Tyre size The Ashok leyland Ecomet Star 1615 HE comes with cross ply tube tyre size of 9.00R20;16PR. the front wheel track is 1946mm & Rear wheel track is about 1816mm.

Ashok leyland Ecomet Star 1615HE option 1 - Day Cabin

Ashok leyland Ecomet Star 1615 HE of 3970mm wheelbase have a load body span of 17ft (5.2m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-7030mm, overall height-2780mm, overall width- 2207mm, & fuel tank capacity of 185 Ltr.
This vehicle comes with fixed side deck, drop side deck & high side deck load body option with an internal cargo box / load body length of 5287mm & a width of 2260mm/2306mm,the internal height of fixed side deck is 593mm, drop side deck is 591mm & high side deck is 1105mm.Please refer to the top of the page for detailed specifications.

Ashok leyland Ecomet Star 1615HE option 2 - Day Cabin

Ashok leyland Ecomet Star 1615 HE of 4200mm wheelbase have a load body span of 19ft (5.8m) , the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-7605mm, overall height-2780mm, overall width- 2207mm, & fuel tank capacity of 185 Ltr.
This vehicle comes with fixed side deck & high side deck load body option with an internal cargo box / load body length of 5810mm & a width of 2260mm,the internal height of fixed side deck is 593mm & high side deck is 1105mm.Please refer to the top of the page for detailed specifications.

Ashok leyland Ecomet Star 1615HE option 3 - Day Cabin

Ashok leyland Ecomet Star 1615 HE of 4200mm wheelbase have a load body span of 20ft (6.1m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-8050mm, overall height-2780mm, overall width-2207mm & fuel tank capacity of 185 Ltr.
This vehicle comes with only high side deck load body option with an internal cargo box / load body length of 6096mm & a width of 2260mm, the internal height of high side deck is 1105mm.Please refer to the top of the page for detailed specifications.

Ashok leyland Ecomet Star 1615HE option 4 - Day Cabin

Ashok leyland Ecomet Star 1615 HE of 4750mm wheelbase have a load body span of 22ft (6.7m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-8500mm, overall height-2780mm, overall width-2207mm & fuel tank capacity of 185 Ltr.
This vehicle comes with only fixed side deck, drop side deck & high side deck load body option with an internal cargo box / load body length of 6768mm & a width of 2260mm/2306mm, the internal height of fixed side deck is 593mm, drop side deck is 591mm & high side deck is 1105mm.Please refer to the top of the page for detailed specifications.

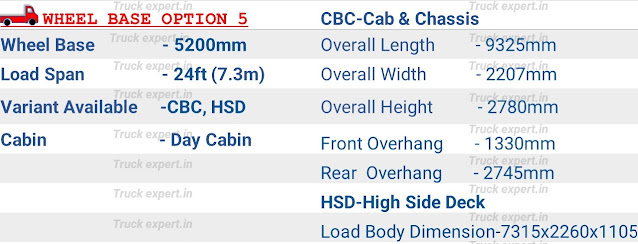

Ashok leyland Ecomet Star 1615HE option 5 - Day Cabin

Ashok leyland Ecomet Star 1615 HE of 5200mm wheelbase have a load body span of 24ft (7.3m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-9325mm, overall height-2780mm, overall width-2207mm & fuel tank capacity of 185 Ltr.
This vehicle comes with only high side deck load body option with an internal cargo box / load body length of 7315mm & a width of 2260mm, the internal height of high side deck is 1105mm.Please refer to the top of the page for detailed specifications.

Ashok leyland Ecomet Star 1615HE - Engine Specification

Ashok leyland Ecomet Star 1615 HE comes with a maximum engine output power of 150 hp @ 2400 rpm & a maximum torque of 450N-m @ 1250-2000 rpm at the rear drive axle, this power is Produced from a 3840cc H series BS-6 4-cylinder CRS with iGen6 Technology engine. The engine is forward control & This vehicle comes under the N3 category.

Ashok leyland Ecomet Star 1615HE- Transmission & Suspension

The engine of Ashok leyland Ecomet Star 1615 HE is coupled with a 6 Speed ODGB - FGR 6.93, cable CSO system (6 forward & 1 reverse) synchromesh Transmission system with a single plate dry type clutch with clutch booster,
ZF6S36 OD GB - FGR 6.93 | ZF 6S OD - FGR 8.28(Option)
The clutch has a Diameter of 330mm. The chassis frame Section of Ashok leyland Ecomet Star 1615 HE is 204 x 76 x 6mm. Ashok leyland Ecomet Star 1615 HE comes with semi elliptical multi leaf at front suspension & rear suspension.

Ashok leyland Ecomet Star 1615HE- Cabin & Steering System

Ashok leyland Ecomet Star 1615 HE has an integral power steering, The Tiltable ecomet star day cabin gives a good comfort with the overall ground clearance of 273mm.

Ashok leyland Ecomet Star 1615HE- Brake System

The service brakes are pneumatic foot operated dual line systems acting on wheels & Parking Brakes at rear wheels only. The front & rear wheels have drum brakes.

Ashok leyland Ecomet Star 1615HE- Tyre size

The Ashok leyland Ecomet Star 1615 HE comes with cross ply tube tyre size of 9.00R20;16PR. the front wheel track is 1946mm & Rear wheel track is about 1816mm.

Ashok leyland Ecomet Star 1615HE- Fuel Capacity & Electrical

The fuel tank capacity is 185Ltr for remaining all other wheel bases, Adblue Capacity is 24Ltr.
The Electrical system consists of a 12V,120AH, 90A- alternator.

Ashok leyland Ecomet Star 1615HE- Feature

Superior mileage: Proven iEGR Technology
Gear shift adviser system (GSAS)
Lower Diesel Exhaust Fluid (DEF) consumption
Rear Park Alert System (RPAS)
NexGen i-alert (Fleet management, fuel monitoring-diagnostics, remote access)

Ashok leyland Ecomet Star 1615HE Warranty

4 Year / 4 Lakh Km on drive line

Frequently Asked Questions about Ashok Leyland Ecomet star 1615 HE

Q. What is the gvw (Gross Vehicle Weight) of ashokleyland ecomet star 1615 HE?

A. 16100 Kg is the gvw of ashokleyland ecomet star 1615 HE .

Q. What all are the available Wheelbase of ashokleyland ecomet star 1615 HE?

A. 3970mm, 4200mm, 4750mm, 5200mm are the available wheelbase for ashokleyland Ecomet 1615HE.

Q. What all are the available Load Body Span of ashokleyland ecomet star 1615 HE?

A. 17ft (5.2m), 19ft (5.8m), 20ft (6.1m), 22ft (6.7m), 24ft (7.3m) are the available wheelbase for ashokleyland ecomet star 1615HE.

Q. What is the Tyre Size of ashokleyland ecomet star 1615 HE ?

A. 9.00R20-16PR is the Tyre sizes of ashok leyland ecomet star 1615HE.

Q. What is the Kerb Weight of ashokleyland ecomet star 1615 HE?

A. Ashokleyland Ecomet 1615 HE have a Kerb weight of 4418kg to 4592Kg depending upon wheel base for its "cab chassis- chassis with no load6 body"

Q. What is the Payload of ashokleyland Ecomet star 1615 HE?

A. Ashokleyland ecomet 1615HE have a payload of 11,682Kg to 11,508Kg depending upon wheel base for its "cab chassis- chassis with no load body" (To get actual payload subtract the load body weight )

Q. What is the Front Track width of Ashok Leyland ecomet star 1615 HE ?

A. 1946mm is the front track width of ashok leyland ecomet 1615 HE Truck.

Q. What is the Rear Track width of Ashok Leyland ecomet star 1615 HE ?

A. 1816mm is the front track width of ashok leyland 1615 HE Truck

Q. Which type of Applications does Ashokleyland ecomet star 1615 HE ideal fit ?

A. Ashok Leyland ecomet star 1615HE is specially designed for maximum payload and ideal fit for applications like Fruits & vegetables, Market Load, Parcel & Logistics, Agri Goods, White Goods, POL Tanker, Cement, LPG Cylinder, Industrial Goods.
