Ashok Leyland Ecomet 1615 HE CNG price, gvw & detailed specifications
Ashok Leyland Ecomet 1615 HE CNG BS6
Latest Price Range ₹28,00,000.00 onwards.
Ashokleyland Ecomet 1615HE CNG Bs6 latest price range starts from ₹28,00,000.00 lakhs onwards, Ashok leyland Ecomet 1615HE CNG Price Varies Depending on its Wheel Base, Load body options & Specifications.
Ashok leyland Ecomet 1615HE CNG is a truck with 16,100Kg gross vehicle weight.
The engine powering this truck is H series Bs6 4-cylinder CNG Engine producing Power of 144 HP @ 2400 rpm and a Torque of 450 Nm @ 1250-2000 rpm.
Ashok leyland Ecomet 1615HE CNG is a 4x2 goods carrier available in builted body & drive away chassis options like HSD-High side deck & CBC-Cab & Chassis i.e. chassis without loadbody.
The ashok leyland ecomet star1615HE Bs6 CNG comes with a 3970mm, 4200mm, 4750mm, 5200mm wheelbase options & load body span of 17ft (5.2m), 20ft(6.0m) ,22ft (6.7m), 24ft(7.3m).
 |
| Ashok Leyland Ecomet 1615 HE CNG - Chassis Drawing |
Ashok leyland Ecomet 1615HE CNG option 1
Ashok leyland Ecomet 1615 HE CNG of 3970mm wheelbase have a load body span of 17ft (5.2m).
The overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length -7030mm, overall width - 2207mm, overall height -2780mm, Front overhang -1330mm, Rear overhang -1730mm.
The Built body option is available in HSD Load body in which the internal length, width & Height are as specified 5287mm x 2264mm x 1105mm.
Ashok leyland Ecomet 1615HE CNG option 2
Ashok leyland Ecomet 1615 HE CNG of 4200mm wheelbase have a load body span of 20ft (6m).
The overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length -8050mm, overall width - 2207mm, overall height -2780mm, Front overhang -1330mm, Rear overhang -2520mm.
The Built body option is available in HSD Load body in which the internal length, width & Height are as specified 6096mm x 2264mm x 1105mm.
Ashok leyland Ecomet 1615HE CNG option 3
Ashok leyland Ecomet 1615 HE CNG of 4750mm wheelbase
have a load body span of 22ft (6.7m).
The overall dimensions of cab & chassis (chassis without
load body) are mentioned above including its overall length -8500mm, overall
width - 2207mm, overall height -2780mm, Front overhang -1330mm, Rear overhang
-2420mm.
The Built body option is available in HSD Load body in which the
internal length , width & Height are as specified 6770mm x 2264mm x 1105mm.

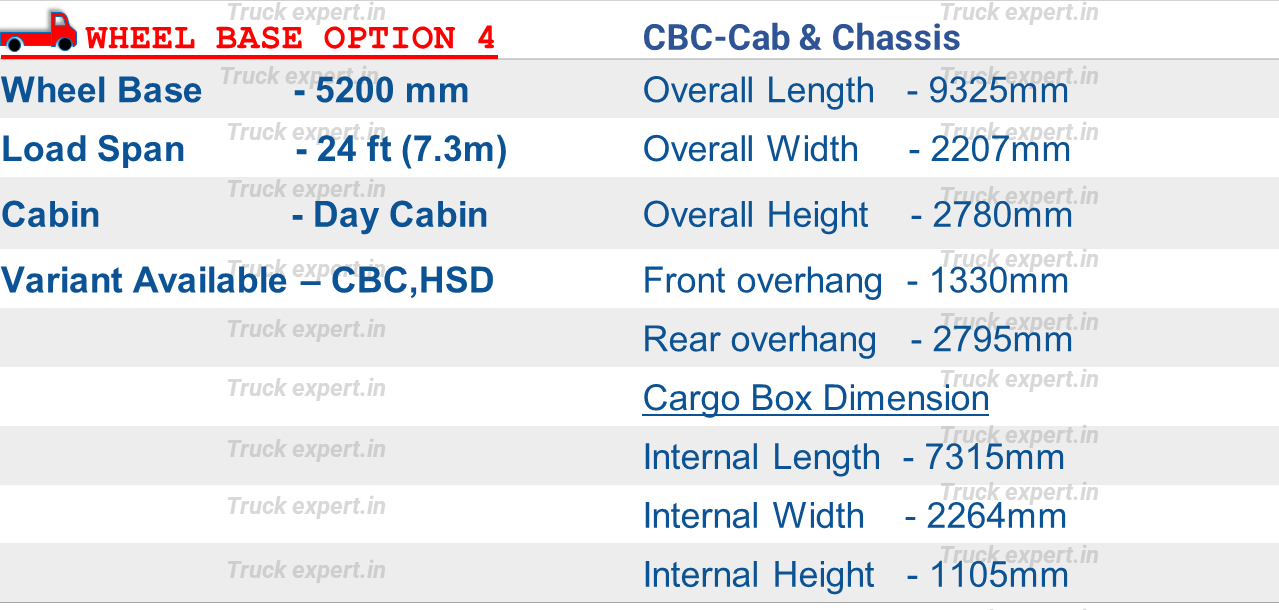

Ashok leyland Ecomet 1615HE CNG option 4
Ashok leyland Ecomet 1615 HE CNG of 5200mm wheelbase
have a load body span of 24ft (7.3m).
The overall dimensions of cab & chassis (chassis without
load body) are mentioned above including its overall length -9325mm, overall
width - 2207mm, overall height -2780mm, Front overhang -1330mm, Rear overhang
-2795mm.
The Built body
option is available in HSD Load body in which the internal length, width &
Height are as specified 7315mm x 2264mm x 1105mm.
Ashok leyland Ecomet 1615HE CNG - Engine Specification.
Ashok leyland Ecomet 1615 HE CNG comes with a maximum engine output power of 144 hp @ 2400 rpm & a maximum torque of 450N-m @ 1200-2000 rpm at the rear drive axle.
This power
is Produced from a H series BS-6 4-cylinder CNG engine.
The engine is forward control & This vehicle comes under the N3
category.
Ashok leyland Ecomet 1615HE CNG - Transmission & Clutch.
The engine of Ashok leyland Ecomet 1615 HE CNG is coupled with
a 6 Speed ZF6S36 ODGB (6 forward & 1 reverse)
synchromesh Transmission system with a 330mm Diameter single
plate dry type clutch with clutch booster.
Ashok leyland Ecomet 1615HE CNG - Suspension.
Front & Rear Suspension - Semi Elliptical Multi-leaf.
Ashok leyland Ecomet 1615HE CNG - Chassis Frame.
The chassis frame Section of Ecomet1615 HE CNG is 204 x
76 x 6mm.
Ashok leyland Ecomet 1615HE CNG - Steering System.
Ashok leyland Ecomet 1615 HE CNG has an integral power steering.
Ashok leyland Ecomet 1615HE CNG- Brake System.
The service brakes are pneumatic foot operated Full air dual
line systems acting on wheels.
Parking Brakes hand operated at rear wheels only. The front
& rear wheels have drum brakes.
Ashok leyland Ecomet 1615HE CNG- Fuel Tank & Electrical
System.
Fuel Tank Capacity - 360 Ltr, 480Ltr, 570Ltr.
Electrical System - 12V, 120Ah, Alternator - 90Ah
Ashok leyland Ecomet 1615HE CNG- Tyre Size.
Tyre Size
- 9.00R20 16PR.
Front Track- 1946mm.
Rear Track- 1670mm.
Ashok leyland Ecomet 1615HE CNG- Features.
CNG SAFETY FEATURES
- Swagelok fittings
- Stainless steel pipes
- High pressure filter
- Ignition cut off switch
- Vent lines
- Manual cylinder valve
- Approved cylinder from PESO
- Meets all safety standards as per ARAI
- Wide choice of CNG options (90L, 120L, 180L and 240L)
- Dual filling nozzles
- Shut of valve.
The new Ecomet STAR CNG provides high fuel efficiency, better
tyre life, longer service intervals and overall lower maintenance cost. All of
this translates to enhancement in the Turnaround Time (TAT)
for the fleet owner thereby resulting in best-in-class Total Cost of
Ownership (TCO).
Ashok leyland Ecomet 1615HE CNG- Warranty.
The
Ecomet vehicles come with 4 Yrs. /lakhs Km hr warranty.
Frequently Asked Questions about Ashok Leyland Ecomet 1615 HE
CNG.
Q. What is the
gvw (Gross
Vehicle Weight)
of Ashok Leyland ecomet1615HE CNG?
A. 16,100 Kg is the gvw of ashokleyland
ecomet star 1615 HE CNG .
Q. What all are
the available Wheelbase of Ashok Leyland ecomet star 1615 HE?
A. 3970mm, 4200mm, 4750mm,
5200mm are
the available wheelbase for Ashok Leyland Ecomet 1615HE CNG.
Q. What all are
the available Load Body Span of Ashok Leyland ecomet 1615 HE CNG?
A.17ft (5.2m), 20ft (6.0m),
22ft (6.7m), 24ft (7.3m) are the available wheelbase for Ashok Leyland ecomet star
1615HE CNG.
Q. What is
the Tyre
Size of Ashok
Leyland ecomet star 1615 HE CNG?
A. 9.00 X20 16PR is the Tyre sizes of Ashok
leyland ecomet star 1615HE CNG.
Q. What is
the Front
Track width of
Ashok Leyland ecomet star 1615 HE CNG ?
A. 1946mm is the front track width
of ashok leyland ecomet 1615 HE CNG Trucks.
Q. What is
the Rear
Track width of
Ashok Leyland ecomet star 1615 HE CNG?
A. 1670mm is the front track
width of ashok leyland 1615 HE CNG Trucks.
Q. Which type
of Applications does Ashokleyland
ecomet star 1615 HE ideal fit ?
A. Ashok Leyland
ecomet star 1615HE is specially designed for maximum payload and ideal fit for
applications like Fruits & vegetables, Market Load, Parcel &
Logistics, Agri Goods, White Goods, Cement, Industrial Goods.
 |
 |
 |
 |
 |
 |
 |
Wheel base / Loading span may vary based on load-road-application selected .
Specifications are subject to change and are for reference only
